Using the MS-SQL Server Query Analyzer to Execute SQL Statements

You can use the MS-SQL Server Query Analyzer (QA) to execute any SQL statement supported by MS-SQL Server. (As mentioned in previous tips, no commercially available database supports everything in the SQL-92 standard.) QA has a graphical user interface (GUI) you can use to pose ad hoc (interactive) queries and to send SQL commands to an MS-SQL Server. (MS-SQL Server also provides a command-line interface to the database through ISQL, which you will learn about in Tip 39, "Using the MS-SQL Server ISQL to Execute SQL Statements from the Command Line or Statements Stored in an ASCII File.")

Note

You will need to install MS-SQL Server prior to using the Query Analyzer. Tip 527 gives you step-by-step instructions for installing MS-SQL Server, if you have not yet installed it on your computer system.

To start to start MS-SQL Server QA, perform the following steps:

1. Click on the Start button. Windows will display the Start menu.

2. Select Programs, Microsoft SQL Server 7.0 option; click on Query Analyzer. Windows will start QA and display a Connect to SQL Server dialog box similar to that shown in Figure 38.1.

The MS-SQL Server Query Analyzer Query pane in the Query Analyzer window

When you install MS-SQL Server under Windows NT, the installation program creates several databases, as shown in the DB drop-down list in the right corner of the Query pane in Figure 38.2. Before using QA to send SQL statements to the MS-SQL Server, you must select a database.

To work with the pubs (sample) database, perform the following steps:

1. Click on the drop-down button to the right of the DB field (in the upper-right corner of the QA Query pane) to list the databases on the SQL Server to which you are connected.

2. Click on a database to select it. For the current example, click on pubs.

3. Place your cursor in the Query pane by clicking anywhere within it. QA will place the cursor in the upper-left corner of the Query pane.

4. Enter your SQL statement in the Query pane. For the current example, enter SELECT * FROM authors.

5. To execute the query (entered in Step 4), either press F5 or Ctrl+E, or select the Query menu Execute option. For the current example, press F5. QA will display your query results in a Results pane below the Query pane, similar to that shown in Figure 38.3.

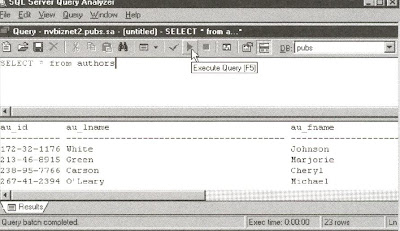

The Query Analyzer, with a query in the Query pane and query results in a Results pane

Whenever you tell QA to execute the SQL in the Query pane, QA will send all of the statements in the Query pane to the SQL Server for processing, unless you select a specific statement (or set of statements) you want to execute. So, be careful you don't press Ctrl+E (or press F5, or select the Query menu Execute option), thinking that QA will send only the last statement you typed to the SQL server.

If you have multiple statements in the Query pane, either remove the ones you don't want to execute, or highlight the statement(s) that you want QA to send to the SQL Server for processing. For example, if you, you had the following statements in the Query pane

SELECT * FROM authors


SELECT * FROM authors WHERE au_lname = 'Green'

and you only wanted to execute the second statement, highlight the second query to select it and then select the Query menu Execute option (or click on the green Execute Query button on the standard toolbar). QA will send only the second select statement to the SQL Server and display the results in the Results pane, similar to that shown in Figure 38.4.

Having QA retain SQL statements in the Query pane after it executes them can save you a lot of typing, especially if you enter a complex query and don't get the results you expect. If you need to change the logic of your query's selection clause, you need only click your cursor in the SQL statement and make your change, without having to retype the entire statement.
